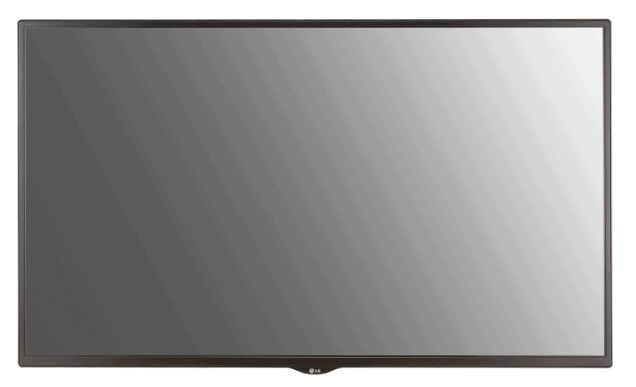

Advertise Me LG FULL HD COMMERCIAL MONITOR DISPLAY SH7E

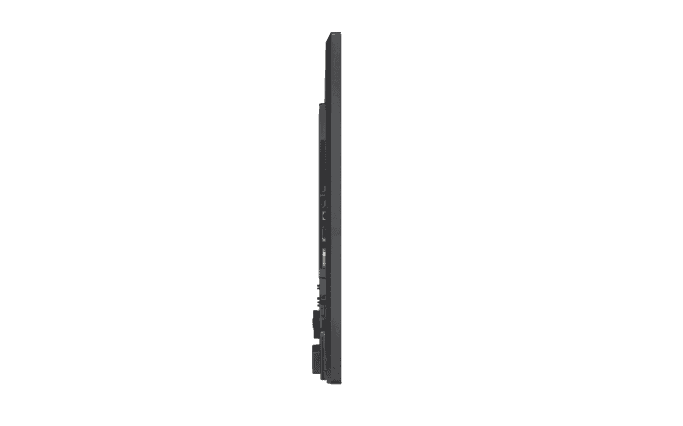

Advertise Me LG FULL HD COMMERCIAL MONITOR DISPLAY SH7E side

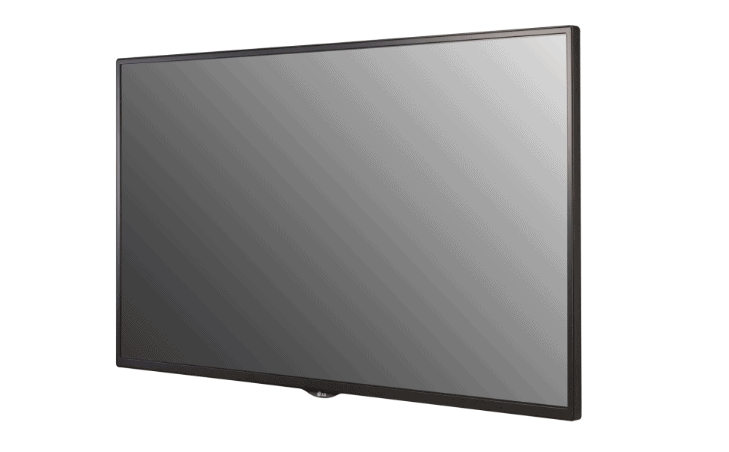

Advertise Me LG FULL HD COMMERCIAL MONITOR DISPLAY SH7E front angle

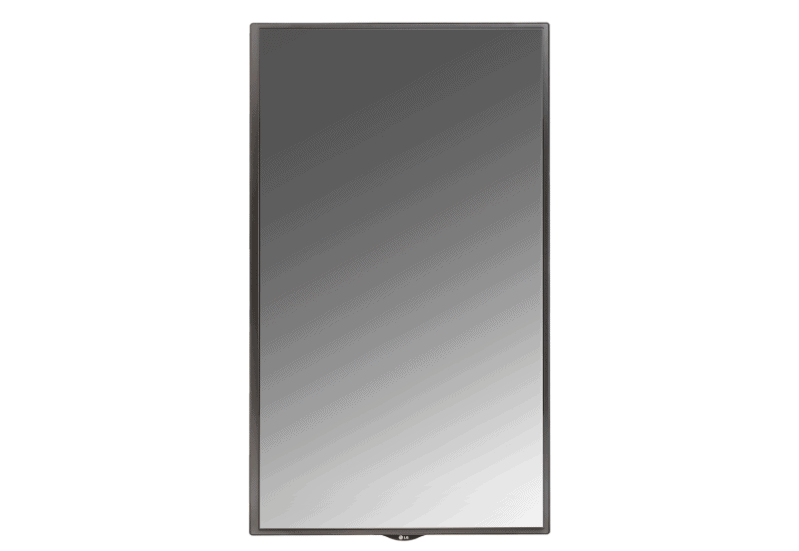

Advertise Me LG FULL HD COMMERCIAL MONITOR DISPLAY SH7E portrait

LG FULL HD COMMERCIAL MONITOR DISPLAY 43″ 49″ 55″ SH7E

With a powerfully enhanced smart platform, the SH7E series is a versatile display able to respond to each customer’s specific needs. Moreover, it delivers clear and vivid content with high brightness, which is ideal for brightly lit locations.

SKU: LG-SH7E Categories: , , , Tags: , , , , , , , , ,

Description

LG FULL HD COMMERCIAL MONITOR DISPLAY 43″ 49″ 55″ SH7E

Brand: LG

Product codes:

43SH7E
49SH7E
55SH7E

Screen sizes:

43″

49″

55″

Features:

High Brightness (IPS Panel with 700 cd/m2 brightness), thermal printer supported, real time control and monitoring, webOS embedded, Built in Wi-Fi, Builti-in Speakers (10W+10W), webOS 4.0 Smart Platform, Signage 365 Care for Real-time control and monitoring, Embedded CMS for content management

USE OUR ONLINE CONTENT MANAGEMENT SYSTEM
This screen is compatible with our cloud-based management system called AdvertiseMe.TV
VIEW PRODUCT

OVERVIEW

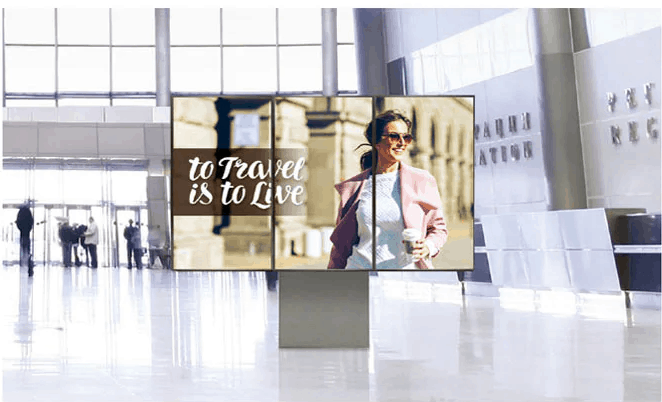

High Visibility
The 700 cd/m² brightness is enough to stand out against the surrounding background, so signage can attract passerby and delivers content vividly and effectively.
Advertise Me LG FULL HD COMMERCIAL MONITOR DISPLAY SH7E HIgh Visibility

Wide Viewing Angle

Thanks to IPS technology, SH7E series provides a clear, vibrant picture with no washed out tones at any angle.
Advertise Me LG FULL HD COMMERCIAL MONITOR DISPLAY SH7E View Angle

Thermal Printer Supported

Users can easily enable the thermal printer solution* by plugging a USB into the display. It functions versatilely as a ticketing machine for various locations such as restaurants, movie theaters, banks and airports.
*Supported model: NIPPON PRIMEX (NP-3511, NP-3611).
Advertise Me LG FULL HD COMMERCIAL MONITOR DISPLAY SH7E Thermal Printer

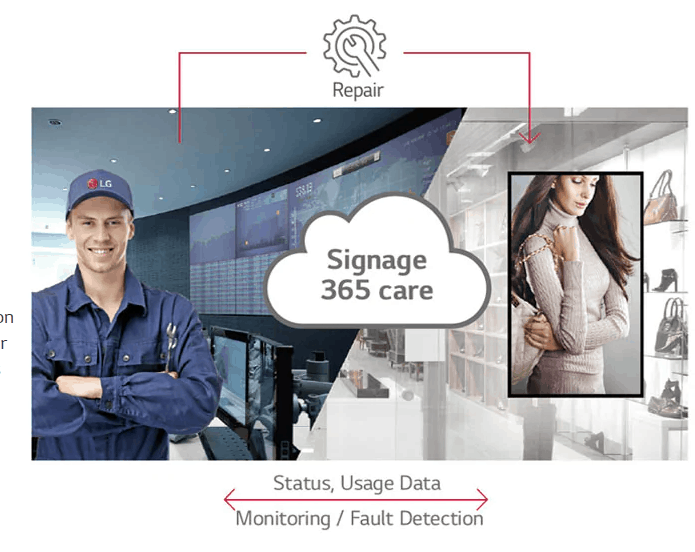

Real-time Control & Monitoring

The maintenance gets easier and faster with Signage 365 Care, a cloud service solution provided by LGE service. It remotely manages status of displays in clent workplaces for fault diagnosis and remote-control services, ensuring the stable operation of a client’s business.
Advertise Me LG FULL HD COMMERCIAL MONITOR DISPLAY SH7E Real Time Control and Monitoring

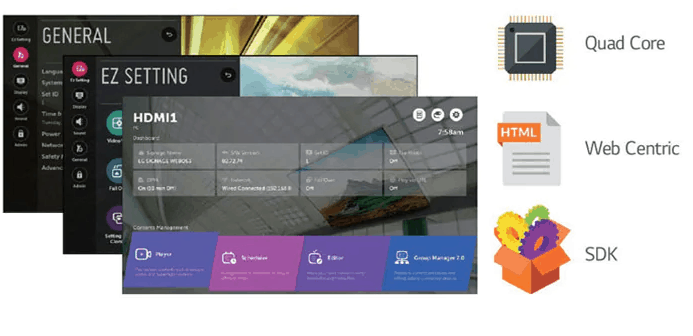

User-friendly Smart Platform

The LG webOS smart signage platform is tailored to diverse commercial requirements. It supports HTML5 as a web-based platform and offers SDK*, so SIs can easily build and execute their own apps. Moreover, LG webOS enhances user convenience by providing an intuitive UI that is optimized for business purposes.
*SDK: Software Development Kit.
Advertise Me LG FULL HD COMMERCIAL MONITOR DISPLAY SH7E Performance

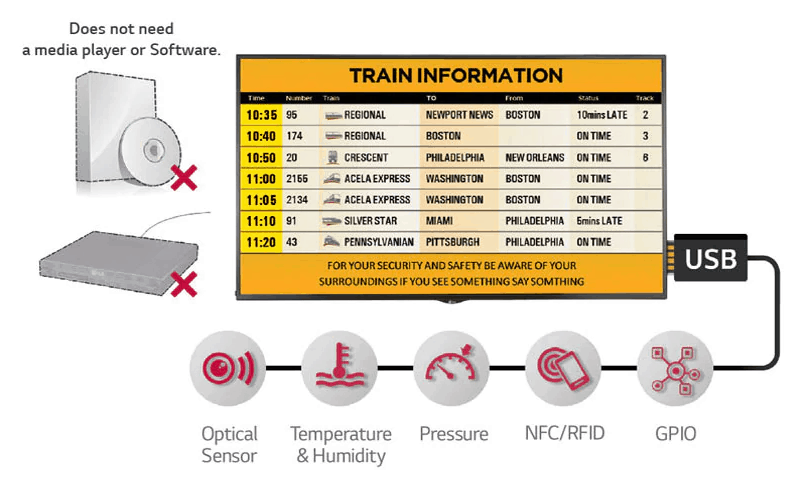

All-in-one Display
Powered by a smart platform, SH7E easily supports connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc. via USB plug-in. The overall cost of ownership is reduced as there’s no need to purchase additional software or media players.
Advertise Me LG FULL HD COMMERCIAL MONITOR DISPLAY SH7E All in one display

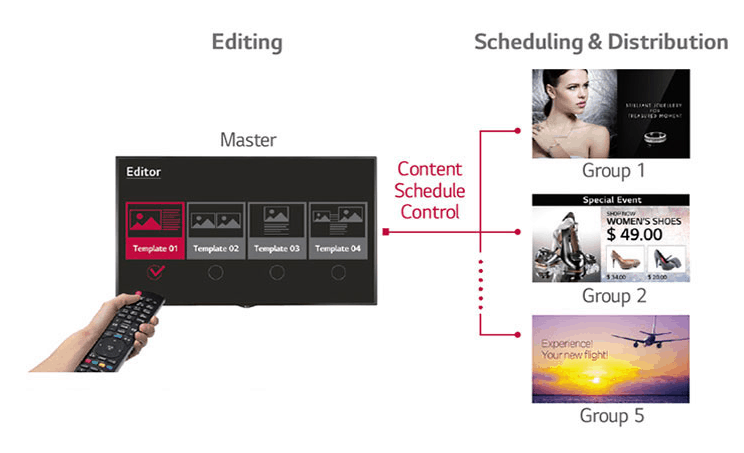

Embedded CMS
The embedded CMS* allows you to edit and play content, schedule a playlist and even group and control signages via remote control, without need for a separate PC. This makes content management much easier and user-friendly.
*CMS: Content Management System.
Advertise Me LG FULL HD COMMERCIAL MONITOR DISPLAY SH7E Embedded CMS

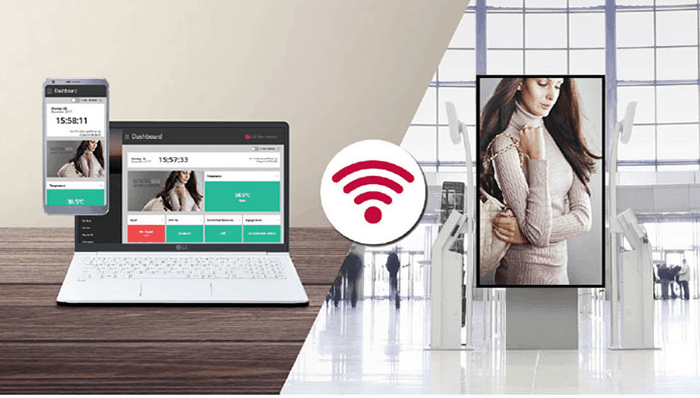

Mobile & Web Monitoring
Through the control manager, the embedded web monitoring program, you can check the status, control settings, and receive log information and other data in real-time.
Advertise Me LG FULL HD COMMERCIAL MONITOR DISPLAY SH7E Mobile Web Monitoring

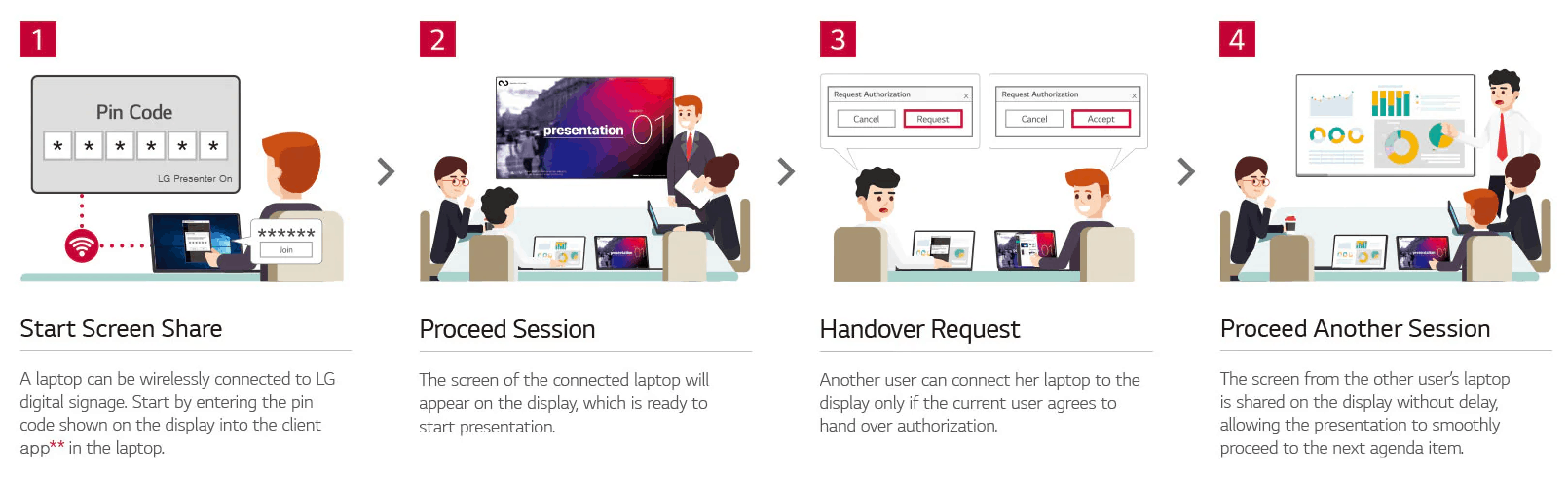

Optimized Work-Flow with LG Presenter

LG Presenter, an embedded application, enables wireless screen sharing* between computers and LG digital signages. It provides users with a smart and convenient meeting experience, reducing time spent unnecessarily managing devices and cables for connection.
*A laptop and a display must be connected to the same network.
*Installation of the PC client app is required. Go to the ‘Tech Spec’ section of this page for the minimum requirements and then download the app from the ‘Business Resources’ section.
Advertise Me LG FULL HD COMMERCIAL MONITOR DISPLAY SH7E Presenter

43" SPECS

PANEL

  • Screen Size
    43″(108cm)
    Panel Technology
    IPS
  • Aspect Ratio
    16 : 9
    Native Resolution
    1,920 x 1,080 (FHD)
  • Refresh Rate
    60Hz
    Brightness
    700 cd/m²
  • Viewing Angle (H x V)
    178 x 178
    Surface Treatment (Haze)
    Hard Coating (2H), Anti-glare Low Reflection Treatment of the Front Polariser (Haze 3% (Typ.))
  • Operation Hours
    24 Hrs
    Orientation
    Landscape & Portrait

CONNECTIVITY

  • Input
    HDMI (3), DP, DVI-D, Audio, USB 3.0
    Output
    DP (SST), Audio (Off/Fixed/Variable)
  • External Control
    RS232C In/out, RJ45 In, IR In

MECHANICAL SPECIFICATION

  • Bezel Colour
    Black
    Bezel Width
    11.9 mm (T/R/L), 18 mm (B)
  • Monitor Dimension (W x H x D)
    969.6 x 563.9 x 54 mm
    Weight (Head)
    10.5 kg
  • Monitor Dimension with Optional Stand
    969.6 x 622.2 x 193 mm
    Weight (Head+Stand)
    13.0 kg
  • Carton Dimensions (W x H x D)
    1,052 x 650 x 123 mm
    Packed Weight
    12.6 kg
  • VESA™ Standard Mount Interface
    200 x 200 mm

ENVIRONMENTAL CONDITIONS

  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10% to 80%

POWER

  • Power Type
    100-240V~, 50/60Hz
    Power Supply
    Built-In Power
  • Power Consumption-Typ./Max.
    95 W / 125 W
    Power Consumption-Smart Energy Saving
    66.5 W

CERTIFICATION

  • Safety
    AS/NZS 60950,CB Scheme
    EMC
    AS/NZS CISPR32,RCM(Class A)
  • ErP / Energy Star
    N/A / Yes (Energy Star 8.0)

MEDIA PLAYER COMPATIBILITY

  • OPS Type Compatible
    Yes
    External Media Player Attachable
    Yes

SOFTWARE COMPATIBILITY

  • Content Management Software
    SuperSign CMS
    Control and Monitoring Software
    SuperSign Control / Control+

ACCESSORIES

  • Basic
    Remote Controller (2 Batteries Included), Power Cord, QSG, HDMI Cable, Regulation Book, Phone to RS232C Gender
    Optional
    Stand (ST-432T), Media Player, Wall Bracket (LSW230B), VESA Adapter (AM-B220S), OPS Kit (KT-OPSA), HDBaseT (EB-B100), Touch Overlay (KT-T43E)

49" SPECS

PANEL

  • Screen Size
    49″(123cm)
    Panel Technology
    IPS
  • Aspect Ratio
    16 : 9
    Native Resolution
    1,920 x 1,080 (FHD)
  • Refresh Rate
    60Hz
    Brightness
    700 cd/m²
  • Viewing Angle (H x V)
    178 x 178
    Surface Treatment (Haze)
    Hard Coating (2H), Anti-glare Low Reflection Treatment of the Front Polariser (Haze 3% (Typ.))
  • Operation Hours
    24 Hrs
    Orientation
    Landscape & Portrait

CONNECTIVITY

  • Input
    HDMI (3), DP, DVI-D, Audio, USB 3.0
    Output
    DP (SST), Audio (Off/Fixed/Variable)
  • External Control
    RS232C In/out, RJ45 In, IR In

MECHANICAL SPECIFICATION

  • Bezel Colour
    Black
    Bezel Width
    11.9 mm (T/R/L), 18 mm (B)
  • Monitor Dimension (W x H x D)
    1,102.2 x 638.5 x 54 mm
    Weight (Head)
    14.3 kg
  • Monitor Dimension with Optional Stand
    1,102.2 x 696.8 x 219.6 mm
    Weight (Head+Stand)
    17.6 kg
  • Carton Dimensions (W x H x D)
    1,197 x 760 x 166 mm
    Packed Weight
    17.4 kg
  • VESA™ Standard Mount Interface
    300 x 300 mm

ENVIRONMENTAL CONDITIONS

  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10% to 80%

POWER

  • Power Type
    100-240V~, 50/60Hz
    Power Supply
    Built-In Power
  • Power Consumption-Typ./Max.
    110 W / 140 W
    Power Consumption-Smart Energy Saving
    77 W

CERTIFICATION

  • Safety
    AS/NZS 60950,CB Scheme
    EMC
    AS/NZS CISPR32,RCM(Class A)
  • ErP / Energy Star
    N/A / Yes (Energy Star 8.0)

MEDIA PLAYER COMPATIBILITY

  • OPS Type Compatible
    Yes
    External Media Player Attachable
    Yes

SOFTWARE COMPATIBILITY

  • Content Management Software
    SuperSign CMS
    Control and Monitoring Software
    SuperSign Control / Control+

ACCESSORIES

  • Basic
    Remote Controller (2 Batteries Included), Power Cord, QSG, HDMI Cable, Regulation Book, Phone to RS232C Gender
    Optional
    Stand (ST-492T), Media Player, Wall Bracket (LSW350B), VESA Adapter (AM-B330S), OPS Kit (KT-OPSA), HDBaseT (EB-B100), Touch Overlay (KT-T49E)

55" SPECS

PANEL

  • Screen Size
    55″(139cm)
    Panel Technology
    IPS
  • Aspect Ratio
    16 : 9
    Native Resolution
    1,920 x 1,080 (FHD)
  • Refresh Rate
    60Hz
    Brightness
    700cd/m²
  • Viewing Angle (H x V)
    178 x 178
    Surface Treatment (Haze)
    Hard Coating (2H), Anti-glare Low Reflection Treatment of the Front Polariser (Haze 3% (Typ.))
  • Operation Hours
    24 Hrs
    Orientation
    Landscape & Portrait

CONNECTIVITY

  • Input
    HDMI (3), DP, DVI-D, Audio, USB 3.0
    Output
    DP (SST),Audio (Off/Fixed/Variable)
  • External Control
    RS232C in/out, RJ45 in, IR in

MECHANICAL SPECIFICATION

  • Bezel Colour
    Black
    Bezel Width
    11.9 mm (T/R/L), 18 mm (B)
  • Monitor Dimension (W x H x D)
    1,238 x 714.9 x 54 mm
    Weight (Head)
    17.5 kg
  • Monitor Dimension with Optional Stand
    1,238 x 773.4 x 219.6 mm
    Weight (Head+Stand)
    20.8 kg
  • Carton Dimensions (W x H x D)
    1,330 x 807 x 170 mm
    Packed Weight
    21.7 kg
  • VESA™ Standard Mount Interface
    300 x 300 mm

ENVIRONMENTAL CONDITIONS

  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10% to 80%

POWER

  • Power Type
    100-240V~, 50/60Hz
    Power Supply
    Built-In Power
  • Power Consumption-Typ./Max.
    130 W / 150 W
    Power Consumption-Smart Energy Saving
    91 W

CERTIFICATION

  • Safety
    AS/NZS 60950,CB Scheme
    EMC
    AS/NZS CISPR32,RCM(Class A)
  • ErP / Energy Star
    N/A / Yes (Energy Star 8.0)

MEDIA PLAYER COMPATIBILITY

  • OPS Type Compatible
    Yes
    External Media Player Attachable
    Yes

SOFTWARE COMPATIBILITY

  • Content Management Software
    SuperSign CMS
    Control and Monitoring Software
    SuperSign Control/Control+

ACCESSORIES

  • Basic
    Remote Controller (2 Batteries Included), Power Cord, QSG, HDMI Cable, Regulation Book, Phone to RS232C Gender
    Optional
    Stand (ST-492T), Media Player, Wall Bracket (LSW350B), VESA Adapter (AM-B330S), OPS Kit (KT-OPSA), HDBaseT (EB-B100), Touch Overlay (KT-T55E)

RESOURCES

Owner’s Manual

English Manual

User Guide

English User Guide

Quick Setup Guide

English Quick Setup Guide

Brochures

English Retail eBook

Specification Sheet

English Spec Sheet
