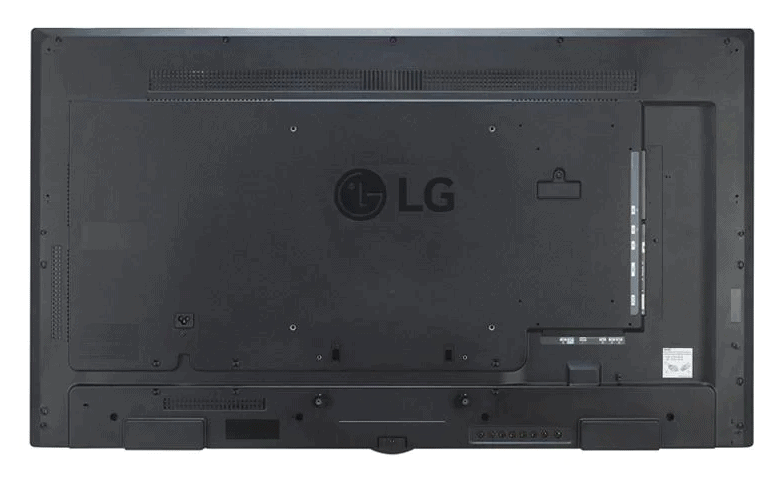

Advertise Me LG FULL HD COMMERCIAL MONITOR DISPLAY SM5KE back

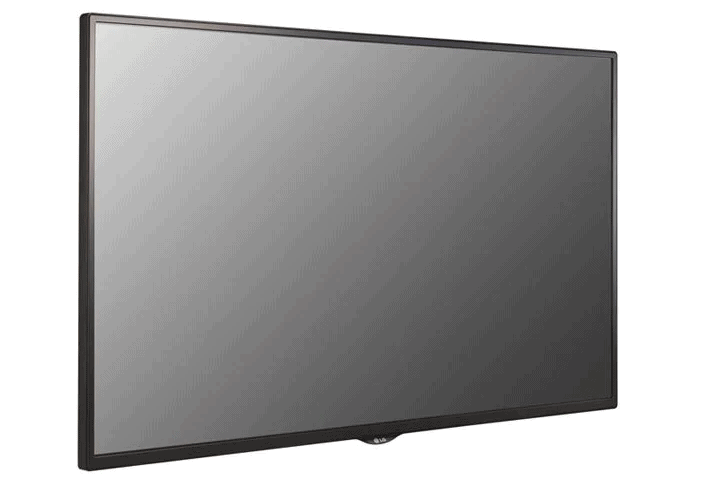

Advertise Me LG FULL HD COMMERCIAL MONITOR DISPLAY SM5KE front angle

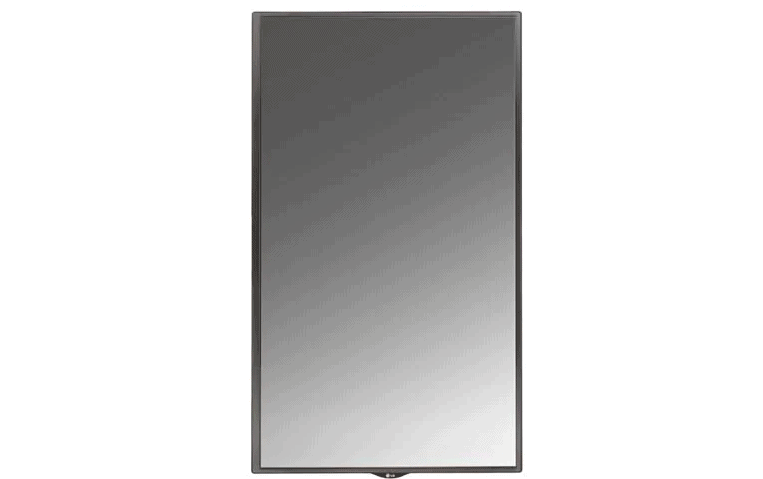

Advertise Me LG FULL HD COMMERCIAL MONITOR DISPLAY SM5KE portrait

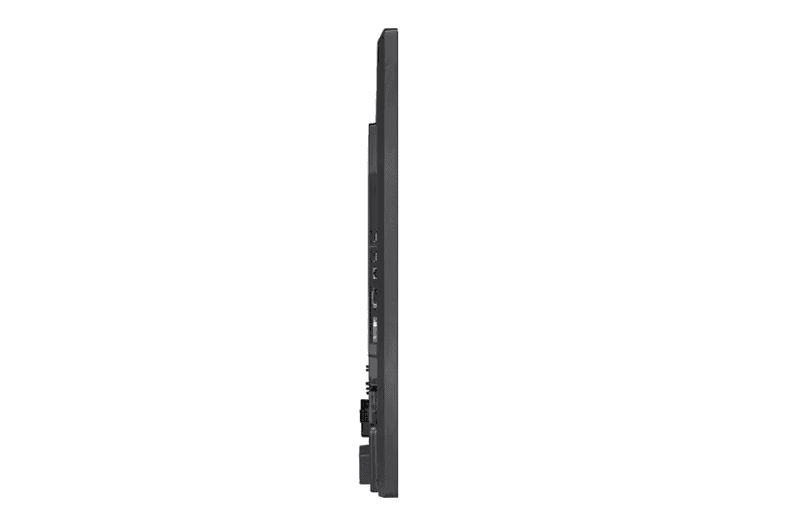

Advertise Me LG FULL HD COMMERCIAL MONITOR DISPLAY SM5KE side view

LG FULL HD COMMERCIAL MONITOR DISPLAY 32″ 43″ 49″ 55″ 65″ SM5KE

The SM5KE series provides dynamic content with clear picture quality, enhancing advertising effectiveness and helping to generate demand for your brand and products. LG webOS 4.0 Smart Platform has not only been optimized to develop and run a variety of customized apps, but user convenience has been enhanced with intuitive UI and value-added functions.

SKU: LG-SM5KE Categories: , , , Tags: , , , , , , , , ,

Description

LG FULL HD COMMERCIAL MONITOR DISPLAY 32″ 43″ 49″ 55″ 65″ SM5KE

Brand: LG

Product codes:

32SM5KE
43SM5KE
49SM5KD/E
55SM5KE
65SM5KD

Screen sizes:

32″

43″

49″

55″

65″

Features:

Quad Core SoC, Wi-Fi with Soft AP, Detachable Logo, webOS3.0 embedded, IP Streaming Protocol, Secure Communication Protocol, User-Friendly Smart Platform, Content Display and Management, Powerful Wireless Capabilities, Reliable Operation, Value-added Offerings, Industrial Design

USE OUR ONLINE CONTENT MANAGEMENT SYSTEM
This screen is compatible with our cloud-based management system called AdvertiseMe.TV
VIEW PRODUCT

OVERVIEW

Advertise Me LG FULL HD COMMERCIAL MONITOR DISPLAY SM5KE simple setup and customization

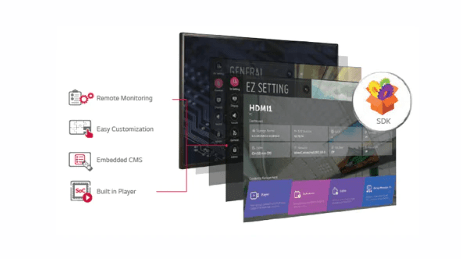

Simple Set-up & Customization

The LG webOS 4.0 smart signage platform supports HTML5 as a web-based platform and offers an SDK (Software Development Kit), so System Integrators can easily build and execute their own apps. Also, it is easy to use with intuitive menu and usable without instructions, as all of signage-related functions can be indexed in one menu.
Advertise Me LG FULL HD COMMERCIAL MONITOR DISPLAY SM5KE embedded content management

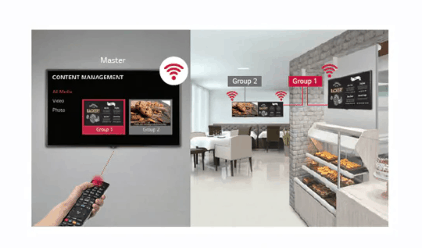

Embedded Content Management

The embedded CMS (Content Management System) allows you to edit and play content, schedule a playlist and even group and control signage via remote control, mouse or even mobile phone, without needing a separate PC or software. This makes content management much easier and user-friendly.
Advertise Me LG FULL HD COMMERCIAL MONITOR DISPLAY SM5KE multi screen mode

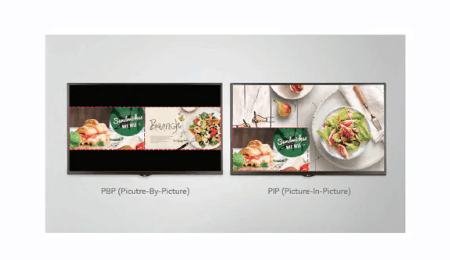

Multi Screen Mode

PBP (Picutre-By-Picture) and PIP (Picture-In-Picture) feature gives a chance to compose up to 2 divided split screen on landscape or portrait display format. This gives great flexibility to users to allocate space for each content source.
Advertise Me LG FULL HD COMMERCIAL MONITOR DISPLAY SM5KE video streaming

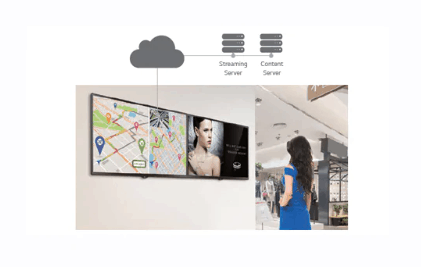

Video Streaming

SM5KE series can play real-time streaming content by supporting various types of IP video streaming protocols such as RTSP/RTP/HLS and UDP Multicast*. This easy-to-manage content system is free from capacity limits for content playback and can provide live broadcasts in real time.

* RTSP (Real-Time Streaming Protocol)
RTP (Real-Time Transport Protocol)
HLS (HTTP Live Streaming)
UDP (User Datagram Protocol) Multicast

Advertise Me LG FULL HD COMMERCIAL MONITOR DISPLAY SM5KE real time promotion

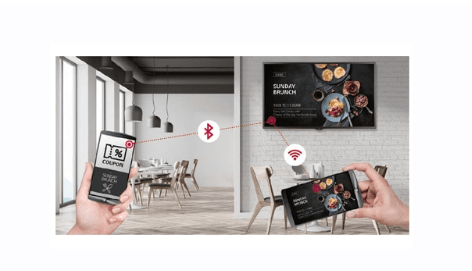

Real-time Promotion

With Beacon and Bluetooth Low Energy (BLE), shop managers can provide coupons and information in realtime.
Advertise Me LG FULL HD COMMERCIAL MONITOR DISPLAY SM5KE content sharing

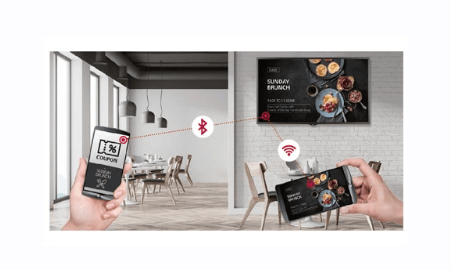

Content Sharing

Content Mirroring among devices is more convenient on a Wi-Fi network.
Advertise Me LG FULL HD COMMERCIAL MONITOR DISPLAY SM5KE wireless access point

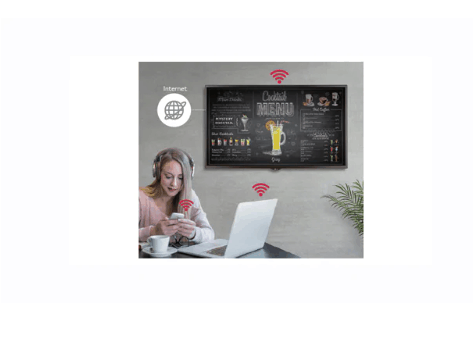

Wireless Access Point

The SM5KE series operates as a virtual router which can be an wireless access point for mobile devices.
Advertise Me LG FULL HD COMMERCIAL MONITOR DISPLAY SM5KE quick web access via proxy server

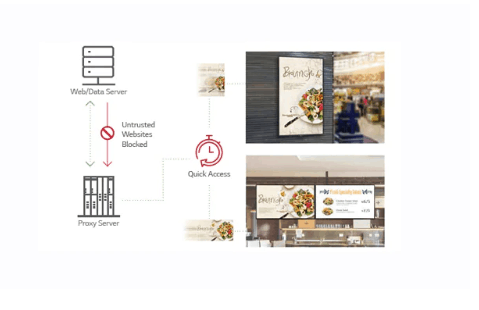

Quick Web Access via Proxy Server

Web access speed and security can be improved by supporting proxy server. Managers can not only block unwanted websites, but also quickly access to resources using caches.

Advertise Me LG FULL HD COMMERCIAL MONITOR DISPLAY SM5KE secured network communications

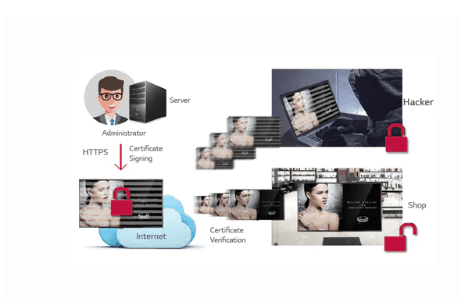

Secured Network Communication

HTTPS* protocol support ensures secure communication between clients and servers. Content or documents using HTTPS can be shared and displayed on digital signage, so owners can protect their critical business assets from unwelcome pirates.

* HTTPS: Hypertext Transfer Protocol over Secure Socket Layer

Advertise Me LG FULL HD COMMERCIAL MONITOR DISPLAY SM5KE thermal printer supported

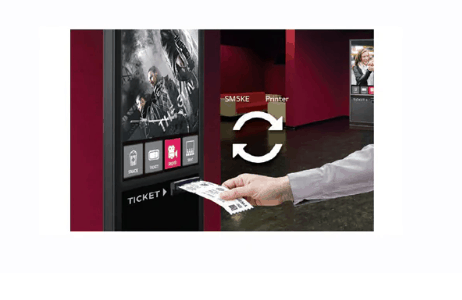

Thermal Printer Supported

Users can easily enable the thermal printer solution* by plugging a USB into the display. This can function as a ticketing machine for various locations such as restaurants, movie theaters, banks and airports.

* Supported model: NIPPON PRIMEX (NP-3511, NP-3611)

Advertise Me LG FULL HD COMMERCIAL MONITOR DISPLAY SM5KE real time care service

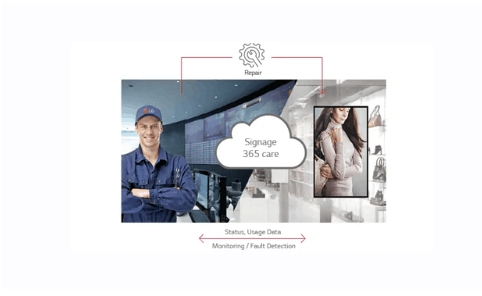

Real-time Care Service

The maintenance gets easier and faster with an optional service Signage 365 Care, a cloud service solution provided by LG service. It remotely manages status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of a client’s business.
Advertise Me LG FULL HD COMMERCIAL MONITOR DISPLAY SM5KE detachable logo built in speaker

Detachable Logo & Built-in Speaker

The detachable logo allows for installation in the desired orientation in landscape or portrait mode, making it easy for the user to arrange the signage. Also, sound can be played from built-in speakers, giving advertisements greater impact.
Advertise Me LG FULL HD COMMERCIAL MONITOR DISPLAY SM5KE conformal coating

Conformal Coating

Electronics products can be often unavoidably exposed to dust and water during maintenance. LG applies a conformal coating on major circuit boards to minimize such circumstances by protecting against dust, iron powder, humidity, etc.
Content sourced from LG.com website

32" SPECS

PANEL

  • Screen Size
    32″
    Panel Technology
    IPS
  • Contrast Ratio
    1,100:1
    Response Time
    10 ms (G to G BW), 7.1 ms (WOT)
  • Brightness
    400 nits
    Aspect Ratio
  • Native Resolution
    1,920 x 1,080 (FHD)
    Viewing Angle (H x V)
    178°/178°
  • Orientation
    Landscape & Portrait
    Lifetime (Typ.)
    50,000 Hrs
  • Operation Hours
    24 Hrs
    Surface Treatment (Haze)
    Hard Coating (3H), Anti-glare Treatment of the Front Polarizer (Haze 1% (Typ.))

CONNECTIVITY

  • Input
    HDMI (3), DP, DVI-D, Audio, USB 3.0
    Output
    DP (SST), Audio (Off/Fixed/Variable)
  • External Control
    RS232C In/out, RJ45 In, IR Receiver In

PHYSICAL SPECIFICATIONS

  • Bezel Color
    Black
    Bezel Width
    13 mm (T/R/L), 18 mm (B)
  • Monitor Dimension (W x H x D)
    28.7” x 16.9” x 2.2” / 729.4 x 428.9 x 55.5 mm
    Weight (Head)
    11.9 lbs / 5.4 kg
  • Monitor w/opt. Stand Dimensions (W x H x D)
    28.7” x 18.9” x 6.1” / 729.4 x 481 x 154.2 mm
    Weight (Head + Stand)
    13.7 lbs / 6.2 kg
  • Carton Dimensions (W x H x D)
    31.2” x 20.1” x 5.2” / 810 x 510 x 132 mm
    Packed Weight
    14.8 lbs / 6.7 kg
  • VESA TM Standard Mount Interface
    200mm x 200mm

KEY FEATURES

  • Yes
    Internal Memory 8GB (System 4GB, Available 3.6GB), Built-in Wi-Fi, Temperature Sensor, Auto Brightness Sensor, Current Sensor, webOS 4.0, Embedded CMS, Fail Over, Image Customization, PIP/PBP(2), Screen Share, Video Tag (2), Play via URL, Gapless Playback, Tile Mode Setting (Up to 15×15), Setting Data Cloning, Firmware Update by Network, SNMP (Ver. 1.4), Control Manager, Crestron Connected®*, Extron IP Link, Smart Energy Saving, Beacon, HDMI-CEC (2)**, Built-in Speaker (10W+10W)

ENVIRONMENTAL CONDITIONS

  • Operating Temperature Range
    0°C to 40°C / 32°F to 104°F
    Operating Humidity Range
    10 % to 80 %

POWER

  • Power Supply
    100-240V~, 50/60Hz
    Power Type
    Built-In Power
  • Power Consumption (Smart Energy Saving)
    45 W (TBD)
    Power Consumption (Typ./Max)
    60 W (TBD) / 85 W

STANDARD CERTIFICATIONS

  • Safety
    IEC 60950-1 / EN 60950-1 / UL 60950-1
    EMC
    FCC Class “A” / CE / KCC

MEDIA PLAYER COMPATIBILITY

  • External Media Player Attatchable
    Yes
    OPS Type Compatible
    Yes

SOFTWARE COMPATIBILITY

  • Content Management Software
    SuperSign CMS
    Control and Monitoring Software
    SuperSign Control+/Control

ACCESSORIES

  • Basic
    Remote Controller (2ea Batteries Included), Power Cord, QSG, HDMI Cable, Regulation Book, Phone to RS232C Gender, Memory Cover
    Optional
    Stand (ST-322T), Media Player, Wall Bracket (LSW230B), VESA Adapter (AM-B220S), OPS Kit (KT-OPSA), HDBaseT (EB-B100), Touch Overlay (KT-T32E)

WARRANTY

  • Limited Warranty
    3-Year Limited Warranty

43" SPECS

PANEL

  • Screen Size
    43″
    Panel Technology
    IPS
  • Contrast Ratio
    1,100:1
    Response Time
    12 ms (G to G BW), 9.4 ms (WOT)
  • Brightness
    450 nits
    Aspect Ratio
  • Native Resolution
    1,920 x 1,080 (FHD)
    Viewing Angle (H x V)
    178°/178°
  • Orientation
    Landscape & Portrait
    Lifetime (Typ.)
    50,000 Hrs
  • Operation Hours
    24 Hrs
    Surface Treatment (Haze)
    Hard Coating (3H), Anti-glare Treatment of the Front Polarizer (Haze 1% (Typ.))

CONNECTIVITY

  • Input
    HDMI (3), DP, DVI-D, Audio, USB 3.0
    Output
    DP (SST), Audio (Off/Fixed/Variable)
  • External Control
    RS232C In/out, RJ45 In, IR Receiver In

PHYSICAL SPECIFICATIONS

  • Bezel Color
    Black
    Bezel Width
    11.9 mm (T/R/L), 18 mm (B)
  • Monitor Dimension (W x H x D)
    38.2” x 22.2” x 2.1” / 969.6 x 563.9 x 54 mm
    Weight (Head)
    22 lbs / 10.0 kg
  • Monitor w/opt. Stand Dimensions (W x H x D)
    38.2” x 24.5” x 7.6” / 969.6 x 622.2 x 193 mm
    Weight (Head + Stand)
    27.6 lbs / 12.5 kg
  • VESA TM Standard Mount Interface
    200 x 200 mm
    Carton Dimensions (W x H x D)
    41.4” x 25.6” x 4.8” / 1,052 x 650 x 123 mm
  • Packed Weight
    27.8 lbs / 12.6 kg

KEY FEATURES

  • Yes
    Internal Memory 8GB (System 4GB, Available 3.6GB), Built-in Wi-Fi, Temperature Sensor, Auto Brightness Sensor, Current Sensor, webOS 4.0, Embedded CMS, Fail Over, Image Customization, PIP/PBP(2), Screen Share, Video Tag (2), Play via URL, Gapless Playback, Tile Mode Setting (Up to 15×15), Setting Data Cloning, Firmware Update by Network, SNMP (Ver. 1.4), Control Manager, Crestron Connected®*, Extron IP Link, Smart Energy Saving, Beacon, HDMI-CEC (2)**, Built-in Speaker (10W+10W)

ENVIRONMENTAL CONDITIONS

  • Operating Temperature Range
    0°C to 40°C / 32°F to 104°F
    Operating Humidity Range
    10 % to 80 %

POWER

  • Power Supply
    100-240 V~, 50/60 Hz
    Power Type
    Built-In Power
  • Power Consumption (Smart Energy Saving)
    55 W (TBD)
    Power Consumption (Typ./Max)
    75 W (TBD) / 95 W

STANDARD CERTIFICATIONS

  • Safety
    IEC 60950-1 / EN 60950-1 / UL 60950-1
    EMC
    FCC Class “A” / CE / KC

MEDIA PLAYER COMPATIBILITY

  • External Media Player Attatchable
    Yes
    OPS Type Compatible
    Yes

SOFTWARE COMPATIBILITY

  • Content Management Software
    SuperSign CMS
    Control and Monitoring Software
    SuperSign Control / Control+

ACCESSORIES

  • Basic
    Remote Controller (2ea Batteries Included), Power Cord, QSG, HDMI Cable, Regulation Book, Phone to RS232C Gender, Memory Cover
    Optional
    Stand (ST-432T), Media Player, Wall Bracket (LSW230B), VESA Adapter (AM-B220S), OPS Kit (KT-OPSA), HDBaseT (EB-B100), Touch Overlay (KT-T43E)

WARRANTY

  • Limited Warranty
    3-Year Limited Warranty

49" SPECS

PANEL

  • Screen Size
    49″
    Panel Technology
    IPS
  • Contrast Ratio
    1,100:1
    Response Time
    12 ms (G to G BW), 10.1 ms (WOT)
  • Brightness
    450 nits
    Aspect Ratio
    16:9
  • Native Resolution
    1,920 x 1,080 (FHD)
    Viewing Angle (H x V)
    178°/178°
  • Orientation
    Landscape & Portrait
    Lifetime (Typ.)
    50,000 Hrs
  • Operation Hours
    24 Hrs
    Surface Treatment (Haze)
    Hard Coating (3H), Anti-glare Treatment of the Front Polarizer (Haze 1% (Typ.))

CONNECTIVITY

  • Input
    HDMI (3), DP, DVI-D, Audio, USB 3.0
    Output
    DP (SST), Audio (Off/Fixed/Variable)
  • External Control
    RS232C In/out, RJ45 In, IR Receiver In

PHYSICAL SPECIFICATIONS

  • Bezel Color
    Black
    Bezel Width
    11.9 mm (T/R/L), 18 mm (B)
  • Monitor Dimension (W x H x D)
    43.4” x 25.1” x 2.1” / 1,102.2 x 638.5 x 54 mm
    Weight (Head)
    31.5 lbs / 14.3 kg
  • Monitor w/opt. Stand Dimensions (W x H x D)
    43.4” x 27.4” x 8.6” / 1102.2 x 696.8 x 219.6 mm
    Weight (Head + Stand)
    38.8 lbs / 17.6 kg
  • Carton Dimensions (W x H x D)
    47.1” x 29.9” x 6.5” / 1,197 x 760 x 166 mm
    Packed Weight
    38.4 lbs / 17.4 kg
  • VESA TM Standard Mount Interface
    300 x 300 mm

KEY FEATURES

  • Yes
    Internal Memory 8GB (System 4GB, Available 3.6GB), Built-in Wi-Fi, Temperature Sensor, Auto Brightness Sensor, Current Sensor, webOS 4.0, Embedded CMS, Fail Over, Image Customization, PIP/PBP(2), Screen Share, Video Tag (2), Play via URL, Gapless Playback, Tile Mode Setting (Up to 15×15), Setting Data Cloning, Firmware Update by Network, SNMP (Ver. 1.4), Control Manager, Crestron Connected®*, Extron IP Link, Smart Energy Saving, Beacon, HDMI-CEC (2)**, Built-in Speaker (10W+10W)

ENVIRONMENTAL CONDITIONS

  • Operating Temperature Range
    0°C to 40°C / 32°F to 104°F
    Operating Humidity Range
    10 % to 80 %

POWER

  • Power Supply
    100-240 V~, 50/60 Hz
    Power Type
    Built-In Power
  • Power Consumption (Smart Energy Saving)
    60 W (TBD)
    Power Consumption (Typ./Max)
    85 W (TBD) / 105 W

STANDARD CERTIFICATIONS

  • Safety
    IEC 60950-1 / EN 60950-1 / UL 60950-1
    EMC
    FCC Class “A” / CE / KC

MEDIA PLAYER COMPATIBILITY

  • External Media Player Attatchable
    Yes
    OPS Type Compatible
    Yes

SOFTWARE COMPATIBILITY

  • Content Management Software
    SuperSign CMS
    Control and Monitoring Software
    SuperSign Control+/Control

ACCESSORIES

  • Basic
    Remote Controller (2ea Batteries Included), Power Cord, QSG, HDMI Cable, Regulation Book, Phone to RS232C Gender, Memory Cover
    Optional
    Stand (ST-492T), Media Player, Wall Bracket (LSW350B), VESA Adapter (AM-B330S), OPS Kit (KT-OPSA), HDBaseT (EB-B100), Touch Overlay (KT-T49E)

WARRANTY

  • Limited Warranty
    3-Year Limited Warranty

55" SPECS

PANEL

  • Screen Size
    55″
    Panel Technology
    IPS
  • Contrast Ratio
    1,100:1
    Response Time
    12 ms (G to G BW), 9.0 ms (WOT)
  • Brightness
    450 nits
    Aspect Ratio
  • Native Resolution
    1,920 x 1,080 (FHD)
    Viewing Angle (H x V)
    178°/178°
  • Orientation
    Landscape & Portrait
    Lifetime (Typ.)
    50,000 Hrs
  • Operation Hours
    24 Hrs
    Surface Treatment (Haze)
    Hard Coating (3H), Anti-glare Treatment of the Front Polarizer (Haze 1% (Typ.))

CONNECTIVITY

  • Input
    HDMI (3), DP, DVI-D, Audio, USB 3.0
    Output
    DP (SST), Audio (Off/Fixed/Variable)
  • External Control
    RS232C In/out, RJ45 In, IR Receiver In

PHYSICAL SPECIFICATIONS

  • Bezel Color
    Black
    Bezel Width
    11.9 mm (T/R/L), 18 mm (B)
  • Monitor Dimension (W x H x D)
    48.7” x 28.4” x 2.1” / 1,238 x 714.9 x 54 mm
    Weight (Head)
    38.6 lbs / 17.5 kg
  • Monitor w/opt. Stand Dimensions (W x H x D)
    48.7” x 30.4” x 8.6” / 1,238m x 773.4 x 219.6 mm
    Weight (Head + Stand)
    45.9 lbs / 20.8 kg
  • VESA TM Standard Mount Interface
    300mm x 300mm
    Carton Dimensions (W x H x D)
    52.4” x 31.8” x 6.7” / 1,330 x 807 x 170 mm
  • Packed Weight
    47.8 lbs / 21.7 kg

KEY FEATURES

  • Yes
    Internal Memory 8GB (System 4GB, Available 3.6GB), Built-in Wi-Fi, Temperature Sensor, Auto Brightness Sensor, Current Sensor, webOS 4.0, Embedded CMS, Fail Over, Image Customization, PIP/PBP(2), Screen Share, Video Tag (2), Play via URL, Gapless Playback, Tile Mode Setting (Up to 15×15), Setting Data Cloning, Firmware Update by Network, SNMP (Ver. 1.4), Control Manager, Crestron Connected®*, Extron IP Link, Smart Energy Saving, Beacon, HDMI-CEC (2)**, Built-in Speaker (10W+10W)

ENVIRONMENTAL CONDITIONS

  • Operating Temperature Range
    0°C to 40°C / 32°F to 104°F
    Operating Humidity Range
    10 % to 80 %

POWER

  • Power Supply
    Built-In Power
    Power Type
    100-240V~, 50/60Hz
  • Power Consumption (Smart Energy Saving)
    70 W (TBD)
    Power Consumption (Typ./Max)
    100 W (TBD) / 115 W

STANDARD CERTIFICATIONS

  • Safety
    IEC 60950-1 / EN 60950-1 / UL 60950-1
    EMC
    FCC Class “A” / CE / KCC

MEDIA PLAYER COMPATIBILITY

  • External Media Player Attatchable
    Yes
    OPS Type Compatible
    Yes

SOFTWARE COMPATIBILITY

  • Content Management Software
    SuperSign CMS
    Control and Monitoring Software
    SuperSign Control+/Control

ACCESSORIES

  • Basic
    Remote Controller (2ea Batteries Included), Power Cord, QSG, HDMI Cable, Regulation Book, Phone to RS232C Gender, Memory Cover
    Optional
    Stand (ST-492T), Media Player, Wall Bracket (LSW350B), VESA Adapter (AM-B330S), OPS Kit (KT-OPSA), HDBaseT (EB-B100), Touch Overlay (KT-T49E)

WARRANTY

  • Limited Warranty
    3-Year Limited Warranty

RESOURCES

Owner’s Manual

English Manual

User Guide

English User Guide

Quick Setup Guide

English Quick Setup Guide

Brochures

English Retail eBook

Specification Sheet

English Spec Sheet

You may also like…

Related products
